globalConstants.c File Reference
Global constant values. More...

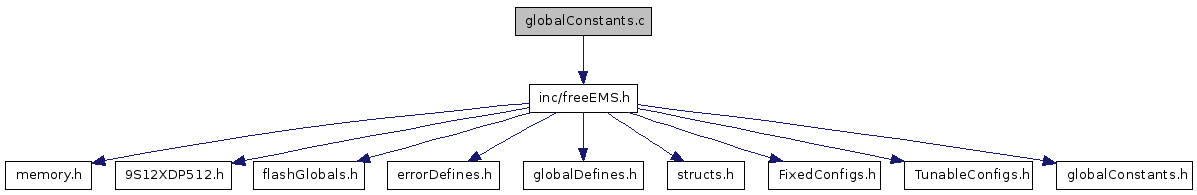

#include "inc/freeEMS.h"
Go to the source code of this file.
Defines | |
| #define | GLOBAL_CONSTANTS_C |
| #define | NO_CONST_ARRAYS |
Variables | |
| const unsigned short | maxBasicDatalogLength = sizeof(CoreVar) + sizeof(DerivedVar) + sizeof(ADCArray) |
| const unsigned char | interfaceVersionAndType [20] = {0,0,0,'I','F','r','e','e','E','M','S',' ','V','a','n','i','l','l','a',0} |
| const unsigned char | firmwareVersion [32] = {"FreeEMS Vanilla 0.1.0 UltraJizz"} |
| const unsigned long | masterFuelConstant = 139371764 |
| const unsigned long | MAFFuelConstant = 0 |
| const unsigned short | injectorSwitchOnCodeTime = 100 |
| const unsigned short | injectorSwitchOffCodeTime = 100 |
| const unsigned short | injectorMaximumPulseWidth = 0xF424 |
| const unsigned short | injectorMinimumPulseWidth = 100 |
| const unsigned short | ignitionMaximumDwell = 50000 |
| const unsigned short | ignitionMinimumDwell = 500 |
| const unsigned short | ignitionMaximumDelayToDwellStartAfterTooth = 50000 |
| const unsigned short | ignitionMinimumDelayToDwellStartAfterTooth = 500 |
| const unsigned short | leadingEdgePrimaryRPMInputCodeTime = 100 |
| const unsigned short | trailingEdgePrimaryRPMInputCodeTime = 100 |
| const unsigned short | leadingEdgeSecondaryRPMInputCodeTime = 100 |
| const unsigned short | trailingEdgeSecondaryRPMInputCodeTime = 100 |
| const unsigned short | dwellStartMasks [IGNITION_CHANNELS] = { BIT8_16, BIT9_16, BIT10_16, BIT11_16, BIT12_16, BIT13_16, BIT14_16, BIT15_16, BIT0_16, BIT1_16, BIT2_16, BIT3_16} |
| const unsigned short | ignitionMasks [IGNITION_CHANNELS] = {NBIT8_16,NBIT9_16,NBIT10_16,NBIT11_16,NBIT12_16,NBIT13_16,NBIT14_16,NBIT15_16,NBIT0_16,NBIT1_16,NBIT2_16,NBIT3_16} |
| const unsigned char | injectorMainOnMasks [INJECTION_CHANNELS] = {BIT2, BIT3, BIT4, BIT5, BIT6, BIT7} |
| const unsigned char | injectorMainOffMasks [INJECTION_CHANNELS] = {NBIT2, NBIT3, NBIT4, NBIT5, NBIT6, NBIT7} |
| const unsigned char | injectorMainEnableMasks [INJECTION_CHANNELS] = {0x30, 0xC0, 0x03, 0x0C, 0x30, 0xC0} |
| const unsigned char | injectorMainDisableMasks [INJECTION_CHANNELS] = {0xCF, 0x3F, 0xFC, 0xF3, 0xCF, 0x3F} |
| const unsigned char | injectorMainGoHighMasks [INJECTION_CHANNELS] = {BIT4, BIT6, BIT0, BIT2, BIT4, BIT6} |
| const unsigned char | injectorMainGoLowMasks [INJECTION_CHANNELS] = {NBIT4, NBIT6, NBIT0, NBIT2, NBIT4, NBIT6} |
Detailed Description
Global constant values.All global constants values are, and should be, defined here.
Definition in file globalConstants.c.
Define Documentation
| #define GLOBAL_CONSTANTS_C |
Definition at line 38 of file globalConstants.c.
| #define NO_CONST_ARRAYS |
Definition at line 39 of file globalConstants.c.
Variable Documentation
| const unsigned short dwellStartMasks[IGNITION_CHANNELS] = { BIT8_16, BIT9_16, BIT10_16, BIT11_16, BIT12_16, BIT13_16, BIT14_16, BIT15_16, BIT0_16, BIT1_16, BIT2_16, BIT3_16} |
| const unsigned char firmwareVersion[32] = {"FreeEMS Vanilla 0.1.0 UltraJizz"} |
Displayable firmware version identifier
This should change every time the code is changed at all (even a little) before each release.
Definition at line 77 of file globalConstants.c.
Referenced by decodePacketAndRespond().
| const unsigned short ignitionMasks[IGNITION_CHANNELS] = {NBIT8_16,NBIT9_16,NBIT10_16,NBIT11_16,NBIT12_16,NBIT13_16,NBIT14_16,NBIT15_16,NBIT0_16,NBIT1_16,NBIT2_16,NBIT3_16} |
| const unsigned short ignitionMaximumDelayToDwellStartAfterTooth = 50000 |
Definition at line 131 of file globalConstants.c.
| const unsigned short ignitionMaximumDwell = 50000 |
Definition at line 125 of file globalConstants.c.
| const unsigned short ignitionMinimumDelayToDwellStartAfterTooth = 500 |
Definition at line 134 of file globalConstants.c.
| const unsigned short ignitionMinimumDwell = 500 |
Definition at line 128 of file globalConstants.c.
| const unsigned char injectorMainDisableMasks[INJECTION_CHANNELS] = {0xCF, 0x3F, 0xFC, 0xF3, 0xCF, 0x3F} |
| const unsigned char injectorMainEnableMasks[INJECTION_CHANNELS] = {0x30, 0xC0, 0x03, 0x0C, 0x30, 0xC0} |
| const unsigned char injectorMainGoHighMasks[INJECTION_CHANNELS] = {BIT4, BIT6, BIT0, BIT2, BIT4, BIT6} |
| const unsigned char injectorMainGoLowMasks[INJECTION_CHANNELS] = {NBIT4, NBIT6, NBIT0, NBIT2, NBIT4, NBIT6} |
| const unsigned char injectorMainOffMasks[INJECTION_CHANNELS] = {NBIT2, NBIT3, NBIT4, NBIT5, NBIT6, NBIT7} |
| const unsigned char injectorMainOnMasks[INJECTION_CHANNELS] = {BIT2, BIT3, BIT4, BIT5, BIT6, BIT7} |
Definition at line 169 of file globalConstants.c.
Referenced by InjectorXISR(), and PrimaryRPMISR().
| const unsigned short injectorMaximumPulseWidth = 0xF424 |
Definition at line 117 of file globalConstants.c.
| const unsigned short injectorMinimumPulseWidth = 100 |
| const unsigned short injectorSwitchOffCodeTime = 100 |
| const unsigned short injectorSwitchOnCodeTime = 100 |
| const unsigned char interfaceVersionAndType[20] = {0,0,0,'I','F','r','e','e','E','M','S',' ','V','a','n','i','l','l','a',0} |
Serial interface unique identifier
This should only change when the serial interface changes (even a little)
This field consists of 3 chars for a 3 part version number and a free form string. For any unique string the version number is also unique. In this way tools can easily support a range of versions for a specific unique string ID
Definition at line 71 of file globalConstants.c.
Referenced by decodePacketAndRespond().
| const unsigned short leadingEdgePrimaryRPMInputCodeTime = 100 |
Definition at line 139 of file globalConstants.c.
| const unsigned short leadingEdgeSecondaryRPMInputCodeTime = 100 |
Definition at line 145 of file globalConstants.c.
| const unsigned long MAFFuelConstant = 0 |
MAF fuel constant
- Todo:
- TODO Determine what the value of MAF fuel constant should be
Definition at line 107 of file globalConstants.c.
| const unsigned long masterFuelConstant = 139371764 |
Divisors and untunable physical constants combined into a single master fuel constant
const unsigned short molarMassOfAir = 2897; // in grams per 100 moles, so divide by 100 to get gm/mol const unsigned short msToTicks = 1250; // constant to bring ms into 0.8us chunks const unsigned short universalGasConstant = 34056; // 8.314472 * 4096, so divide by 4096 to get real number
hash define injectorFlowDivisor 1024 hash define injectorFlowUnitDivisor 1000 - to get it into litres/second hash define injectorFlowTotalDivisor 1024000 hash define stoichiometricAFRDivisor 1024 hash define universalGasConstantDivisor 4096 hash define molarMassOfAirDivisor 100 hash define perCylinderVolumeDivisor 32768
TODO hash define the fuel constant for different clock tick setups (msToTicks will vary)
master = (msToTicks * molarMassOfAir * universalGasConstantDivisor * stoichiometricAFRDivisor * injectorFlowTotalDivisor) / (universalGasConstant * molarMassOfAirDivisor * perCylinderVolumeDivisor); master = (1250 * 2897 * 4096 * 1024 * 1024000 ) / (34056 * 100 * 32768 ); http://www.google.com/search?hl=en&safe=off&q=((1250+*+2897+*+4096+*+1024+*+1024000)+2F+(34056+*++100+*+32768)&btnG=Search
((1250 * 2897 * 4096 * 1024 * 1024000) / (34056 * 100 * 32768) = 139371764
Definition at line 101 of file globalConstants.c.
Referenced by initConfiguration().
| const unsigned short maxBasicDatalogLength = sizeof(CoreVar) + sizeof(DerivedVar) + sizeof(ADCArray) |
Definition at line 57 of file globalConstants.c.
Referenced by decodePacketAndRespond(), and initVariables().
| const unsigned short trailingEdgePrimaryRPMInputCodeTime = 100 |
Definition at line 142 of file globalConstants.c.
| const unsigned short trailingEdgeSecondaryRPMInputCodeTime = 100 |
