Subaru-36-2-2-2.c File Reference

Subaru 36 minus 2 2 2. More...

#include "inc/freeEMS.h"
#include "inc/interrupts.h"

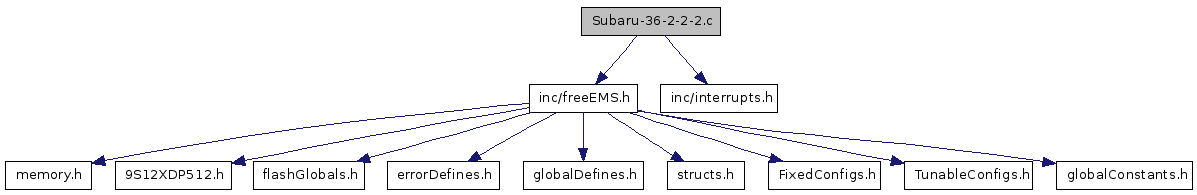

Include dependency graph for Subaru-36-2-2-2.c:

Go to the source code of this file.

Functions

void PrimaryRPMISR (void)
void SecondaryRPMISR (void)
 Use the rising and falling edges...................


Detailed Description

Subaru 36 minus 2 2 2.

Note:
Pseudo code that does not compile with zero warnings and errors MUST be commented out.
Todo:
TODO This file contains SFA but [anon] is going to fill it up with
Todo:
TODO wonderful goodness very soon ;-)
Author:
Who Ever

Definition in file Subaru-36-2-2-2.c.


Function Documentation

void PrimaryRPMISR ( void   )

Primary RPM ISR

Todo:
TODO Docs here!

Todo:
TODO discard narrow ones! test for tooth width and tooth period the width should be based on how the hardware is setup. IE the LM1815 is adjusted to have a pulse output of a particular width. This noise filter should be matched to that width as should the hardware filter.

Definition at line 50 of file Subaru-36-2-2-2.c.

References fixedConfig1::coreSettingsA, Counters, fixedConfigs1, ISRLatencyVars, PORTJ, PRIMARY_POLARITY, ISRLatencyVar::primaryInputLatency, RuntimeVar::primaryInputLeadingRuntime, RuntimeVar::primaryInputTrailingRuntime, primaryPulsesPerSecondaryPulse, Counter::primaryTeethSeen, PTIT, RuntimeVars, TC0, TCNT, TFLG, TFLGOF, timerExtensionClock, and LongTime::timeShorts.

00051 {
00052     /* Clear the interrupt flag for this input compare channel */
00053     TFLG = 0x01;
00054
00055     /* Save all relevant available data here */
00056     unsigned short codeStartTimeStamp = TCNT;       /* Save the current timer count */
00057     unsigned short edgeTimeStamp = TC0;             /* Save the edge time stamp */
00058     unsigned char PTITCurrentState = PTIT;          /* Save the values on port T regardless of the state of DDRT */
00059 //  unsigned short PORTS_BACurrentState = PORTS_BA; /* Save ignition output state */
00060
00061     /* Calculate the latency in ticks */
00062     ISRLatencyVars.primaryInputLatency = codeStartTimeStamp - edgeTimeStamp;
00063
00064     // TODO discard narrow ones! test for tooth width and tooth period
00065
00066     /* Set up edges as per config */
00067     unsigned char risingEdge;
00068     if(fixedConfigs1.coreSettingsA & PRIMARY_POLARITY){
00069         risingEdge = PTITCurrentState & 0x01;
00070     }else{
00071         risingEdge = !(PTITCurrentState & 0x01);
00072     }
00073
00074     if(risingEdge){
00075         /* Echo input condition on J7 */
00076         PORTJ |= 0x80;
00077
00078         // increment crank pulses TODO this needs to be wrapped in tooth period and width checking
00079         primaryPulsesPerSecondaryPulse++;
00080
00081         LongTime timeStamp;
00082
00083         /* Install the low word */
00084         timeStamp.timeShorts[1] = edgeTimeStamp;
00085         /* Find out what our timer value means and put it in the high word */
00086         if(TFLGOF && !(edgeTimeStamp & 0x8000)){ /* see 10.3.5 paragraph 4 of 68hc11 ref manual for details */
00087             timeStamp.timeShorts[0] = timerExtensionClock + 1;
00088         }else{
00089             timeStamp.timeShorts[0] = timerExtensionClock;
00090         }
00091         RuntimeVars.primaryInputLeadingRuntime = TCNT - codeStartTimeStamp;
00092     }else{
00093         PORTJ &= 0x7F;
00094         RuntimeVars.primaryInputTrailingRuntime = TCNT - codeStartTimeStamp;
00095     }
00096
00097     Counters.primaryTeethSeen++;
00098 }

void SecondaryRPMISR ( void   )

Use the rising and falling edges...................

Secondary RPM ISR

Todo:
TODO Docs here!

Todo:
TODO discard narrow ones! test for tooth width and tooth period the width should be based on how the hardware is setup. IE the LM1815 is adjusted to have a pulse output of a particular width. This noise filter should be matched to that width as should the hardware filter.

Definition at line 105 of file Subaru-36-2-2-2.c.

References fixedConfig1::coreSettingsA, Counters, fixedConfigs1, ISRLatencyVars, PORTJ, PTIT, RuntimeVars, SECONDARY_POLARITY, ISRLatencyVar::secondaryInputLatency, RuntimeVar::secondaryInputLeadingRuntime, RuntimeVar::secondaryInputTrailingRuntime, Counter::secondaryTeethSeen, TC1, TCNT, TFLG, TFLGOF, timerExtensionClock, and LongTime::timeShorts.

00106 {
00107     /* Clear the interrupt flag for this input compare channel */
00108     TFLG = 0x02;
00109
00110     /* Save all relevant available data here */
00111     unsigned short codeStartTimeStamp = TCNT;       /* Save the current timer count */
00112     unsigned short edgeTimeStamp = TC1;             /* Save the timestamp */
00113     unsigned char PTITCurrentState = PTIT;          /* Save the values on port T regardless of the state of DDRT */
00114 //  unsigned short PORTS_BACurrentState = PORTS_BA; /* Save ignition output state */
00115
00116     /* Calculate the latency in ticks */
00117     ISRLatencyVars.secondaryInputLatency = codeStartTimeStamp - edgeTimeStamp;
00118
00119     // TODO discard narrow ones! test for tooth width and tooth period
00120
00121     /* Set up edges as per config */
00122     unsigned char risingEdge;
00123     if(fixedConfigs1.coreSettingsA & SECONDARY_POLARITY){
00124         risingEdge = PTITCurrentState & 0x02;
00125     }else{
00126         risingEdge = !(PTITCurrentState & 0x02);
00127     }
00128
00129     if(risingEdge){
00130         // echo input condition
00131         PORTJ |= 0x40;
00132
00133         LongTime timeStamp;
00134
00135         /* Install the low word */
00136         timeStamp.timeShorts[1] = edgeTimeStamp;
00137         /* Find out what our timer value means and put it in the high word */
00138         if(TFLGOF && !(edgeTimeStamp & 0x8000)){ /* see 10.3.5 paragraph 4 of 68hc11 ref manual for details */
00139             timeStamp.timeShorts[0] = timerExtensionClock + 1;
00140         }else{
00141             timeStamp.timeShorts[0] = timerExtensionClock;
00142         }
00143
00144         RuntimeVars.secondaryInputLeadingRuntime = TCNT - codeStartTimeStamp;
00145     }else{
00146         PORTJ &= 0xBF;
00147         RuntimeVars.secondaryInputTrailingRuntime = TCNT - codeStartTimeStamp;
00148     }
00149
00150     Counters.secondaryTeethSeen++;
00151 }
