9S12XDP512.h File Reference
MC9S12XDP512 register definitions. More...

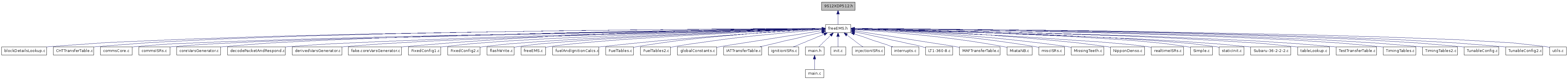

Go to the source code of this file.
Defines | |
| #define | DVUCP(address) (*((volatile unsigned char*)(address))) |
| #define | DVUSP(address) (*((volatile unsigned short*)(address))) |
| #define | AVUCP(address) ((volatile unsigned char*)(address)) |
| #define | AVUSP(address) ((volatile unsigned short*)(address)) |
| #define | PORTS_BA DVUSP(0x0001) |
| #define | PORTA DVUCP(0x0000) |
| #define | PORTB DVUCP(0x0001) |
| #define | PORTE DVUCP(0x0008) |
| #define | PORTK DVUCP(0x0032) |
| #define | DDRA DVUCP(0x0002) |
| #define | DDRB DVUCP(0x0003) |
| #define | DDRE DVUCP(0x0009) |
| #define | DDRK DVUCP(0x0033) |
| #define | DDRC DVUCP(0x0006) |
| #define | DDRD DVUCP(0x0007) |
| #define | PUCR DVUCP(0x000C) |
| #define | RDRIV DVUCP(0x000D) |
| #define | ECLKCTL DVUCP(0x001C) |
| #define | IRQCR DVUCP(0x001E) |
| #define | PTT DVUCP(0x0240) |
| #define | PORTT DVUCP(0x0240) |
| #define | PTIT DVUCP(0x0241) |
| #define | DDRT DVUCP(0x0242) |
| #define | RDRT DVUCP(0x0243) |
| #define | PERT DVUCP(0x0244) |
| #define | PPST DVUCP(0x0245) |
| #define | PTS DVUCP(0x0248) |
| #define | PORTS DVUCP(0x0248) |
| #define | PTIS DVUCP(0x0249) |
| #define | DDRS DVUCP(0x024A) |
| #define | RDRS DVUCP(0x024B) |
| #define | PERS DVUCP(0x024C) |
| #define | PPSS DVUCP(0x024D) |
| #define | WOMS DVUCP(0x024E) |
| #define | PTM DVUCP(0x0250) |
| #define | PORTM DVUCP(0x0250) |
| #define | PTIM DVUCP(0x0251) |
| #define | DDRM DVUCP(0x0252) |
| #define | RDRM DVUCP(0x0253) |
| #define | PERM DVUCP(0x0254) |
| #define | PPSM DVUCP(0x0255) |
| #define | WOMM DVUCP(0x0256) |
| #define | MODRR DVUCP(0x0257) |
| #define | PTP DVUCP(0x0258) |
| #define | PORTP DVUCP(0x0258) |
| #define | PTIP DVUCP(0x0259) |
| #define | DDRP DVUCP(0x025A) |
| #define | RDRP DVUCP(0x025B) |
| #define | PERP DVUCP(0x025C) |
| #define | PPSP DVUCP(0x025D) |
| #define | PIEP DVUCP(0x025E) |
| #define | PIFP DVUCP(0x025F) |
| #define | PTH DVUCP(0x0260) |
| #define | PORTH DVUCP(0x0260) |
| #define | PTIH DVUCP(0x0261) |
| #define | DDRH DVUCP(0x0262) |
| #define | RDRH DVUCP(0x0263) |
| #define | PERH DVUCP(0x0264) |
| #define | PPSH DVUCP(0x0265) |
| #define | PIEH DVUCP(0x0266) |
| #define | PIFH DVUCP(0x0267) |
| #define | PTJ DVUCP(0x0268) |
| #define | PORTJ DVUCP(0x0268) |
| #define | PTIJ DVUCP(0x0269) |
| #define | DDRJ DVUCP(0x026A) |
| #define | RDRJ DVUCP(0x026B) |
| #define | PERJ DVUCP(0x026C) |
| #define | PPSJ DVUCP(0x026D) |
| #define | PIEJ DVUCP(0x026E) |
| #define | PIFJ DVUCP(0x026F) |
| #define | ATD0PER1 DVUCP(0x0277) |
| #define | RPAGE DVUCP(0x0016) |
| #define | PPAGE DVUCP(0x0030) |
| #define | SYNR DVUCP(0x0034) |
| #define | REFDV DVUCP(0x0035) |
| #define | CRGFLG DVUCP(0x0037) |
| #define | CRGINT DVUCP(0x0038) |
| #define | CLKSEL DVUCP(0x0039) |
| #define | PLLCTL DVUCP(0x003A) |
| #define | RTICTL DVUCP(0x003B) |
| #define | COPCTL DVUCP(0x003C) |
| #define | ARMCOP DVUCP(0x003F) |
| #define | TCNT DVUSP(0x0044) |
| #define | TIOS DVUCP(0x0040) |
| #define | TIE DVUCP(0x004C) |
| #define | TSCR1 DVUCP(0x0046) |
| #define | TSCR2 DVUCP(0x004D) |
| #define | TFLG DVUCP(0x004E) |
| #define | TFLGOF DVUCP(0x004F) |
| #define | PTPSR DVUCP(0x006E) |
| #define | TTOV DVUCP(0x0047) |
| #define | CFORC DVUCP(0x0041) |
| #define | OC7M DVUCP(0x0042) |
| #define | OC7D DVUCP(0x0043) |
| #define | TCTL1 DVUCP(0x0048) |
| #define | TCTL2 DVUCP(0x0049) |
| #define | TCTL1_ADDR AVUCP(0x0048) |
| #define | TCTL2_ADDR AVUCP(0x0049) |
| #define | DLYCT DVUCP(0x0069) |
| #define | ICSYS DVUCP(0x006B) |
| #define | ICOVW DVUCP(0x006A) |
| #define | TCTL3 DVUCP(0x004A) |
| #define | TCTL4 DVUCP(0x004B) |
| #define | TC0H DVUSP(0x0078) |
| #define | TC1H DVUSP(0x007A) |
| #define | TC2H DVUSP(0x007C) |
| #define | TC3H DVUSP(0x007E) |
| #define | TC0 DVUSP(0x0050) |
| #define | TC1 DVUSP(0x0052) |
| #define | TC2 DVUSP(0x0054) |
| #define | TC3 DVUSP(0x0056) |
| #define | TC4 DVUSP(0x0058) |
| #define | TC5 DVUSP(0x005A) |
| #define | TC6 DVUSP(0x005C) |
| #define | TC7 DVUSP(0x005E) |
| #define | TC2_ADDR AVUSP(0x0054) |
| #define | TC3_ADDR AVUSP(0x0056) |
| #define | TC4_ADDR AVUSP(0x0058) |
| #define | TC5_ADDR AVUSP(0x005A) |
| #define | TC6_ADDR AVUSP(0x005C) |
| #define | TC7_ADDR AVUSP(0x005E) |
| #define | ICPAR DVUCP(0x0068) |
| #define | PACTL DVUCP(0x0060) |
| #define | PAFLG DVUCP(0x0061) |
| #define | PBCTL DVUCP(0x0070) |
| #define | PBFLG DVUCP(0x0071) |
| #define | PACNUS2 DVUSP(0x0062) |
| #define | PACNUS0 DVUSP(0x0064) |
| #define | PACN3 DVUCP(0x0062) |
| #define | PACN2 DVUCP(0x0063) |
| #define | PACN1 DVUCP(0x0064) |
| #define | PACN0 DVUCP(0x0065) |
| #define | PACHUS2 DVUSP(0x0072) |
| #define | PACHUS0 DVUSP(0x0074) |
| #define | PA3H DVUCP(0x0072) |
| #define | PA2H DVUCP(0x0073) |
| #define | PA1H DVUCP(0x0074) |
| #define | PA0H DVUCP(0x0075) |
| #define | MCCTL DVUCP(0x0066) |
| #define | MCFLG DVUCP(0x0067) |
| #define | MCCNT DVUSP(0x0076) |
| #define | PTMCPSR DVUCP(0x006F) |
| #define | ATD1CTL0 DVUCP(0x0080) |
| #define | ATD1CTL1 DVUCP(0x0081) |
| #define | ATD1CTL2 DVUCP(0x0082) |
| #define | ATD1CTL3 DVUCP(0x0083) |
| #define | ATD1CTL4 DVUCP(0x0084) |
| #define | ATD1CTL5 DVUCP(0x0085) |
| #define | ATD1DIEN0 DVUCP(0x008C) |
| #define | ATD1DIEN1 DVUCP(0x008D) |
| #define | ATD1_BASE 0x0090 |
| #define | ATD1DR0 DVUSP(ATD1_BASE + 0x0) /* 16 bit (0x0090 ATD1DR0H, 0x0091 ATD1DR0L) */ |
| #define | ATD1DR1 DVUSP(ATD1_BASE + 0x2) /* 16 bit (0x0092 ATD1DR1H, 0x0093 ATD1DR1L) */ |
| #define | ATD1DR2 DVUSP(ATD1_BASE + 0x4) /* 16 bit (0x0094 ATD1DR2H, 0x0095 ATD1DR2L) */ |
| #define | ATD1DR3 DVUSP(ATD1_BASE + 0x6) /* 16 bit (0x0096 ATD1DR3H, 0x0097 ATD1DR3L) */ |
| #define | ATD1DR4 DVUSP(ATD1_BASE + 0x8) /* 16 bit (0x0098 ATD1DR4H, 0x0099 ATD1DR4L) */ |
| #define | ATD1DR5 DVUSP(ATD1_BASE + 0xA) /* 16 bit (0x009A ATD1DR5H, 0x009B ATD1DR5L) */ |
| #define | ATD1DR6 DVUSP(ATD1_BASE + 0xC) /* 16 bit (0x009C ATD1DR6H, 0x009D ATD1DR6L) */ |
| #define | ATD1DR7 DVUSP(ATD1_BASE + 0xE) /* 16 bit (0x009E ATD1DR7H, 0x009F ATD1DR7L) */ |
| #define | SCI0_BASE 0x00C8 |
| #define | SCI0BD DVUSP(SCI0_BASE + 0x0) |
| #define | SCI0CR1 DVUCP(SCI0_BASE + 0x2) |
| #define | SCI0ASR1 DVUCP(SCI0_BASE + 0x0) |
| #define | SCI0ACR1 DVUCP(SCI0_BASE + 0x1) |
| #define | SCI0ACR2 DVUCP(SCI0_BASE + 0x2) |
| #define | SCI0CR2 DVUCP(SCI0_BASE + 0x3) |
| #define | SCI0SR1 DVUCP(SCI0_BASE + 0x4) |
| #define | SCI0SR2 DVUCP(SCI0_BASE + 0x5) |
| #define | SCI0DRH DVUCP(SCI0_BASE + 0x6) |
| #define | SCI0DRL DVUCP(SCI0_BASE + 0x7) |
| #define | FCLKDIV DVUCP(0x0100) |
| #define | FSEC DVUCP(0x0101) |
| #define | FCNFG DVUCP(0x0103) |
| #define | FPROT DVUCP(0x0104) |
| #define | FSTAT DVUCP(0x0105) |
| #define | FCMD DVUCP(0x0106) |
| #define | FCTL DVUCP(0x0107) |
| #define | FADDR DVUSP(0x0108) |
| #define | FDATA DVUSP(0x010A) |
| #define | IVBR DVUCP(0x0121) |
| #define | CAN0CTL1 DVUCP(0x0141) |
| #define | CAN1CTL1 DVUCP(0x0181) |
| #define | CAN3CTL1 DVUCP(0x0201) |
| #define | CAN4CTL1 DVUCP(0x0281) |
| #define | ATD0CTL0 DVUCP(0x02C0) |
| #define | ATD0CTL1 DVUCP(0x02C1) |
| #define | ATD0CTL2 DVUCP(0x02C2) |
| #define | ATD0CTL3 DVUCP(0x02C3) |
| #define | ATD0CTL4 DVUCP(0x02C4) |
| #define | ATD0CTL5 DVUCP(0x02C5) |
| #define | ATD0DIEN DVUCP(0x02CD) |
| #define | ATD0_BASE 0x02D0 |
| #define | ATD0DR0 DVUSP(ATD0_BASE + 0x0) /* 16 bit (0x02D0 ATD0DR0H, 0x02D1 ATD0DR0L) */ |
| #define | ATD0DR1 DVUSP(ATD0_BASE + 0x2) /* 16 bit (0x02D2 ATD0DR1H, 0x02D3 ATD0DR1L) */ |
| #define | ATD0DR2 DVUSP(ATD0_BASE + 0x4) /* 16 bit (0x02D4 ATD0DR2H, 0x02D5 ATD0DR2L) */ |
| #define | ATD0DR3 DVUSP(ATD0_BASE + 0x6) /* 16 bit (0x02D6 ATD0DR3H, 0x02D7 ATD0DR3L) */ |
| #define | ATD0DR4 DVUSP(ATD0_BASE + 0x8) /* 16 bit (0x02D8 ATD0DR4H, 0x02D9 ATD0DR4L) */ |
| #define | ATD0DR5 DVUSP(ATD0_BASE + 0xA) /* 16 bit (0x02DA ATD0DR5H, 0x02DB ATD0DR5L) */ |
| #define | ATD0DR6 DVUSP(ATD0_BASE + 0xC) /* 16 bit (0x02DC ATD0DR6H, 0x02DD ATD0DR6L) */ |
| #define | ATD0DR7 DVUSP(ATD0_BASE + 0xE) /* 16 bit (0x02DE ATD0DR7H, 0x02DF ATD0DR7L) */ |
| #define | VREGCTRL DVUCP(0x02F1) |
| #define | VREGAPICL DVUCP(0x02F2) |
| #define | VREGAPITR DVUCP(0x02F3) |
| #define | VREGAPIR DVUSP(0x02F4) |
| #define | PWME DVUCP(0x0300) |
| #define | PWMPOL DVUCP(0x0301) |
| #define | PWMCLK DVUCP(0x0302) |
| #define | PWMPRCLK DVUCP(0x0303) |
| #define | PWMCAE DVUCP(0x0304) |
| #define | PWMCTL DVUCP(0x0305) |
| #define | PWMSCLA DVUCP(0x0308) |
| #define | PWMSCLB DVUCP(0x0309) |
| #define | PWMCNT0 DVUCP(0x030C) |
| #define | PWMCNT1 DVUCP(0x030D) |
| #define | PWMCNT2 DVUCP(0x030E) |
| #define | PWMCNT3 DVUCP(0x030F) |
| #define | PWMCNT4 DVUCP(0x0310) |
| #define | PWMCNT5 DVUCP(0x0311) |
| #define | PWMCNT6 DVUCP(0x0312) |
| #define | PWMCNT7 DVUCP(0x0313) |
| #define | PWMPER0 DVUCP(0x0314) /* PWM period value */ |
| #define | PWMPER1 DVUCP(0x0315) /* */ |
| #define | PWMPER2 DVUCP(0x0316) /* */ |
| #define | PWMPER3 DVUCP(0x0317) /* */ |
| #define | PWMPER4 DVUCP(0x0318) /* */ |
| #define | PWMPER5 DVUCP(0x0319) /* */ |
| #define | PWMPER6 DVUCP(0x031A) /* */ |
| #define | PWMPER7 DVUCP(0x031B) /* PWM period value */ |
| #define | PWMDTY0 DVUCP(0x031C) |
| #define | PWMDTY1 DVUCP(0x031D) |
| #define | PWMDTY2 DVUCP(0x031E) |
| #define | PWMDTY3 DVUCP(0x031F) |
| #define | PWMDTY4 DVUCP(0x0320) |
| #define | PWMDTY5 DVUCP(0x0321) |
| #define | PWMDTY6 DVUCP(0x0322) |
| #define | PWMDTY7 DVUCP(0x0323) |
| #define | PWMSDN DVUCP(0x0324) |
| #define | PITCFLMT DVUCP(0x0340) |
| #define | PITFLT DVUCP(0x0341) |
| #define | PITCE DVUCP(0x0342) |
| #define | PITMUX DVUCP(0x0343) |
| #define | PITINTE DVUCP(0x0344) |
| #define | PITTF DVUCP(0x0345) |
| #define | PITMTLD0 DVUCP(0x0346) |
| #define | PITMTLD1 DVUCP(0x0347) |
| #define | PITLD0 DVUSP(0x0348) |
| #define | PITLD1 DVUSP(0x034C) |
| #define | PITLD2 DVUSP(0x0350) |
| #define | PITLD3 DVUSP(0x0354) |
| #define | PITCNT0 DVUSP(0x034A) |
| #define | PITCNT1 DVUSP(0x034E) |
| #define | PITCNT2 DVUSP(0x0352) |
| #define | PITCNT3 DVUSP(0x0356) |
| #define | XGMCTL DVUSP(0x0380) |
| #define | XGMCTLHI DVUCP(0x0380) |
| #define | XGMCTLLO DVUCP(0x0381) |
Detailed Description
MC9S12XDP512 register definitions.This is the device header for the FreeScale MC9S12XDP512 MCU. It contains declarations that allow access to all of the devices control registers.
These are the full basic register definitions for the Freescale 9S12XDP512 processor as taken from MC9S12XDP512V2.pdf Appendix G
Definition in file 9S12XDP512.h.
Define Documentation
| #define ARMCOP DVUCP(0x003F) |
| #define ATD0_BASE 0x02D0 |
| #define ATD0CTL0 DVUCP(0x02C0) |
Definition at line 789 of file 9S12XDP512.h.
| #define ATD0CTL1 DVUCP(0x02C1) |
Definition at line 790 of file 9S12XDP512.h.
| #define ATD0CTL2 DVUCP(0x02C2) |
| #define ATD0CTL3 DVUCP(0x02C3) |
| #define ATD0CTL4 DVUCP(0x02C4) |
Definition at line 793 of file 9S12XDP512.h.
| #define ATD0CTL5 DVUCP(0x02C5) |
| #define ATD0DIEN DVUCP(0x02CD) |
| #define ATD0DR0 DVUSP(ATD0_BASE + 0x0) /* 16 bit (0x02D0 ATD0DR0H, 0x02D1 ATD0DR0L) */ |
| #define ATD0DR1 DVUSP(ATD0_BASE + 0x2) /* 16 bit (0x02D2 ATD0DR1H, 0x02D3 ATD0DR1L) */ |
| #define ATD0DR2 DVUSP(ATD0_BASE + 0x4) /* 16 bit (0x02D4 ATD0DR2H, 0x02D5 ATD0DR2L) */ |
| #define ATD0DR3 DVUSP(ATD0_BASE + 0x6) /* 16 bit (0x02D6 ATD0DR3H, 0x02D7 ATD0DR3L) */ |
| #define ATD0DR4 DVUSP(ATD0_BASE + 0x8) /* 16 bit (0x02D8 ATD0DR4H, 0x02D9 ATD0DR4L) */ |
| #define ATD0DR5 DVUSP(ATD0_BASE + 0xA) /* 16 bit (0x02DA ATD0DR5H, 0x02DB ATD0DR5L) */ |
| #define ATD0DR6 DVUSP(ATD0_BASE + 0xC) /* 16 bit (0x02DC ATD0DR6H, 0x02DD ATD0DR6L) */ |
| #define ATD0DR7 DVUSP(ATD0_BASE + 0xE) /* 16 bit (0x02DE ATD0DR7H, 0x02DF ATD0DR7L) */ |
| #define ATD0PER1 DVUCP(0x0277) |
Definition at line 181 of file 9S12XDP512.h.
| #define ATD1_BASE 0x0090 |
| #define ATD1CTL0 DVUCP(0x0080) |
| #define ATD1CTL1 DVUCP(0x0081) |
Definition at line 347 of file 9S12XDP512.h.
| #define ATD1CTL2 DVUCP(0x0082) |
| #define ATD1CTL3 DVUCP(0x0083) |
| #define ATD1CTL4 DVUCP(0x0084) |
Definition at line 350 of file 9S12XDP512.h.
| #define ATD1CTL5 DVUCP(0x0085) |
| #define ATD1DIEN0 DVUCP(0x008C) |
| #define ATD1DIEN1 DVUCP(0x008D) |
| #define ATD1DR0 DVUSP(ATD1_BASE + 0x0) /* 16 bit (0x0090 ATD1DR0H, 0x0091 ATD1DR0L) */ |
| #define ATD1DR1 DVUSP(ATD1_BASE + 0x2) /* 16 bit (0x0092 ATD1DR1H, 0x0093 ATD1DR1L) */ |
| #define ATD1DR2 DVUSP(ATD1_BASE + 0x4) /* 16 bit (0x0094 ATD1DR2H, 0x0095 ATD1DR2L) */ |
| #define ATD1DR3 DVUSP(ATD1_BASE + 0x6) /* 16 bit (0x0096 ATD1DR3H, 0x0097 ATD1DR3L) */ |
| #define ATD1DR4 DVUSP(ATD1_BASE + 0x8) /* 16 bit (0x0098 ATD1DR4H, 0x0099 ATD1DR4L) */ |
| #define ATD1DR5 DVUSP(ATD1_BASE + 0xA) /* 16 bit (0x009A ATD1DR5H, 0x009B ATD1DR5L) */ |
| #define ATD1DR6 DVUSP(ATD1_BASE + 0xC) /* 16 bit (0x009C ATD1DR6H, 0x009D ATD1DR6L) */ |
| #define ATD1DR7 DVUSP(ATD1_BASE + 0xE) /* 16 bit (0x009E ATD1DR7H, 0x009F ATD1DR7L) */ |
| #define AVUCP | ( | address | ) | ((volatile unsigned char*)(address)) |
Definition at line 59 of file 9S12XDP512.h.
| #define AVUSP | ( | address | ) | ((volatile unsigned short*)(address)) |
Definition at line 61 of file 9S12XDP512.h.
| #define CAN0CTL1 DVUCP(0x0141) |
Definition at line 563 of file 9S12XDP512.h.
| #define CAN1CTL1 DVUCP(0x0181) |
Definition at line 647 of file 9S12XDP512.h.
| #define CAN3CTL1 DVUCP(0x0201) |
Definition at line 719 of file 9S12XDP512.h.
| #define CAN4CTL1 DVUCP(0x0281) |
Definition at line 754 of file 9S12XDP512.h.
| #define CFORC DVUCP(0x0041) |
Definition at line 258 of file 9S12XDP512.h.
| #define CLKSEL DVUCP(0x0039) |
| #define COPCTL DVUCP(0x003C) |
| #define CRGFLG DVUCP(0x0037) |
Definition at line 231 of file 9S12XDP512.h.
Referenced by initInterrupts(), initPLL(), and RTIISR().
| #define CRGINT DVUCP(0x0038) |
| #define DDRA DVUCP(0x0002) |
| #define DDRB DVUCP(0x0003) |
| #define DDRC DVUCP(0x0006) |
| #define DDRD DVUCP(0x0007) |
| #define DDRE DVUCP(0x0009) |
| #define DDRH DVUCP(0x0262) |
| #define DDRJ DVUCP(0x026A) |
| #define DDRK DVUCP(0x0033) |
| #define DDRM DVUCP(0x0252) |
| #define DDRP DVUCP(0x025A) |
| #define DDRS DVUCP(0x024A) |
| #define DDRT DVUCP(0x0242) |
| #define DLYCT DVUCP(0x0069) |
Definition at line 275 of file 9S12XDP512.h.
| #define DVUCP | ( | address | ) | (*((volatile unsigned char*)(address))) |
Definition at line 54 of file 9S12XDP512.h.
| #define DVUSP | ( | address | ) | (*((volatile unsigned short*)(address))) |
| #define ECLKCTL DVUCP(0x001C) |
Definition at line 102 of file 9S12XDP512.h.
| #define FADDR DVUSP(0x0108) |
Definition at line 503 of file 9S12XDP512.h.
| #define FCLKDIV DVUCP(0x0100) |
| #define FCMD DVUCP(0x0106) |
| #define FCNFG DVUCP(0x0103) |
Definition at line 497 of file 9S12XDP512.h.
| #define FCTL DVUCP(0x0107) |
Definition at line 501 of file 9S12XDP512.h.
| #define FDATA DVUSP(0x010A) |
Definition at line 504 of file 9S12XDP512.h.
| #define FPROT DVUCP(0x0104) |
| #define FSEC DVUCP(0x0101) |
Definition at line 496 of file 9S12XDP512.h.
| #define FSTAT DVUCP(0x0105) |
Definition at line 499 of file 9S12XDP512.h.
Referenced by eraseSector(), initFlash(), and writeWord().
| #define ICOVW DVUCP(0x006A) |
Definition at line 277 of file 9S12XDP512.h.
| #define ICPAR DVUCP(0x0068) |
Definition at line 314 of file 9S12XDP512.h.
| #define ICSYS DVUCP(0x006B) |
Definition at line 276 of file 9S12XDP512.h.
| #define IRQCR DVUCP(0x001E) |
Definition at line 103 of file 9S12XDP512.h.
| #define IVBR DVUCP(0x0121) |
| #define MCCNT DVUSP(0x0076) |
| #define MCCTL DVUCP(0x0066) |
| #define MCFLG DVUCP(0x0067) |
| #define MODRR DVUCP(0x0257) |
Definition at line 139 of file 9S12XDP512.h.
| #define OC7D DVUCP(0x0043) |
Definition at line 260 of file 9S12XDP512.h.
| #define OC7M DVUCP(0x0042) |
Definition at line 259 of file 9S12XDP512.h.
| #define PA0H DVUCP(0x0075) |
Definition at line 334 of file 9S12XDP512.h.
| #define PA1H DVUCP(0x0074) |
Definition at line 333 of file 9S12XDP512.h.
| #define PA2H DVUCP(0x0073) |
Definition at line 332 of file 9S12XDP512.h.
| #define PA3H DVUCP(0x0072) |
Definition at line 331 of file 9S12XDP512.h.
| #define PACHUS0 DVUSP(0x0074) |
Definition at line 330 of file 9S12XDP512.h.
| #define PACHUS2 DVUSP(0x0072) |
Definition at line 329 of file 9S12XDP512.h.
| #define PACN0 DVUCP(0x0065) |
| #define PACN1 DVUCP(0x0064) |
Definition at line 326 of file 9S12XDP512.h.
| #define PACN2 DVUCP(0x0063) |
Definition at line 325 of file 9S12XDP512.h.
| #define PACN3 DVUCP(0x0062) |
Definition at line 324 of file 9S12XDP512.h.
| #define PACNUS0 DVUSP(0x0064) |
Definition at line 323 of file 9S12XDP512.h.
| #define PACNUS2 DVUSP(0x0062) |
Definition at line 322 of file 9S12XDP512.h.
| #define PACTL DVUCP(0x0060) |
| #define PAFLG DVUCP(0x0061) |
Definition at line 318 of file 9S12XDP512.h.
| #define PBCTL DVUCP(0x0070) |
Definition at line 319 of file 9S12XDP512.h.
| #define PBFLG DVUCP(0x0071) |
Definition at line 320 of file 9S12XDP512.h.
| #define PERH DVUCP(0x0264) |
Definition at line 160 of file 9S12XDP512.h.
| #define PERJ DVUCP(0x026C) |
Definition at line 172 of file 9S12XDP512.h.
| #define PERM DVUCP(0x0254) |
Definition at line 133 of file 9S12XDP512.h.
| #define PERP DVUCP(0x025C) |
Definition at line 148 of file 9S12XDP512.h.
| #define PERS DVUCP(0x024C) |
Definition at line 122 of file 9S12XDP512.h.
| #define PERT DVUCP(0x0244) |
Definition at line 112 of file 9S12XDP512.h.
| #define PIEH DVUCP(0x0266) |
| #define PIEJ DVUCP(0x026E) |
Definition at line 174 of file 9S12XDP512.h.
| #define PIEP DVUCP(0x025E) |
Definition at line 150 of file 9S12XDP512.h.
| #define PIFH DVUCP(0x0267) |
| #define PIFJ DVUCP(0x026F) |
| #define PIFP DVUCP(0x025F) |
| #define PITCE DVUCP(0x0342) |
Definition at line 855 of file 9S12XDP512.h.
Referenced by IgnitionDwellISR(), IgnitionFireISR(), and PrimaryRPMISR().
| #define PITCFLMT DVUCP(0x0340) |
| #define PITCNT0 DVUSP(0x034A) |
| #define PITCNT1 DVUSP(0x034E) |
| #define PITCNT2 DVUSP(0x0352) |
Definition at line 867 of file 9S12XDP512.h.
| #define PITCNT3 DVUSP(0x0356) |
Definition at line 868 of file 9S12XDP512.h.
| #define PITFLT DVUCP(0x0341) |
Definition at line 854 of file 9S12XDP512.h.
| #define PITINTE DVUCP(0x0344) |
Definition at line 857 of file 9S12XDP512.h.
Referenced by IgnitionDwellISR(), IgnitionFireISR(), PrimaryRPMISR(), StagedOffISR(), and StagedOnISR().
| #define PITLD0 DVUSP(0x0348) |
Definition at line 861 of file 9S12XDP512.h.
Referenced by IgnitionDwellISR(), IgnitionFireISR(), and PrimaryRPMISR().
| #define PITLD1 DVUSP(0x034C) |
| #define PITLD2 DVUSP(0x0350) |
Definition at line 863 of file 9S12XDP512.h.
| #define PITLD3 DVUSP(0x0354) |
Definition at line 864 of file 9S12XDP512.h.
| #define PITMTLD0 DVUCP(0x0346) |
| #define PITMTLD1 DVUCP(0x0347) |
| #define PITMUX DVUCP(0x0343) |
Definition at line 856 of file 9S12XDP512.h.
| #define PITTF DVUCP(0x0345) |
Definition at line 858 of file 9S12XDP512.h.
Referenced by IgnitionDwellISR(), IgnitionFireISR(), and PrimaryRPMISR().
| #define PLLCTL DVUCP(0x003A) |
| #define PORTA DVUCP(0x0000) |
Definition at line 70 of file 9S12XDP512.h.
Referenced by initIO(), ModDownCtrISR(), PortHISR(), and SCI0ISR().
| #define PORTB DVUCP(0x0001) |
| #define PORTE DVUCP(0x0008) |
| #define PORTH DVUCP(0x0260) |
| #define PORTJ DVUCP(0x0268) |
Definition at line 168 of file 9S12XDP512.h.
Referenced by initIO(), main(), PrimaryRPMISR(), and SecondaryRPMISR().
| #define PORTK DVUCP(0x0032) |
Definition at line 73 of file 9S12XDP512.h.
Referenced by decodePacketAndRespond(), initIO(), and main().
| #define PORTM DVUCP(0x0250) |
| #define PORTP DVUCP(0x0258) |
| #define PORTS DVUCP(0x0248) |
Definition at line 118 of file 9S12XDP512.h.
Referenced by IgnitionDwellISR(), IgnitionFireISR(), and initIO().
| #define PORTS_BA DVUSP(0x0001) |
Definition at line 69 of file 9S12XDP512.h.
Referenced by IgnitionDwellISR(), IgnitionFireISR(), and initConfiguration().
| #define PORTT DVUCP(0x0240) |
| #define PPAGE DVUCP(0x0030) |
Definition at line 205 of file 9S12XDP512.h.
Referenced by decodePacketAndRespond(), eraseSector(), lookupBlockDetails(), writeBlock(), and writeSector().
| #define PPSH DVUCP(0x0265) |
| #define PPSJ DVUCP(0x026D) |
Definition at line 173 of file 9S12XDP512.h.
| #define PPSM DVUCP(0x0255) |
Definition at line 134 of file 9S12XDP512.h.
| #define PPSP DVUCP(0x025D) |
Definition at line 149 of file 9S12XDP512.h.
| #define PPSS DVUCP(0x024D) |
Definition at line 123 of file 9S12XDP512.h.
| #define PPST DVUCP(0x0245) |
Definition at line 113 of file 9S12XDP512.h.
| #define PTH DVUCP(0x0260) |
Definition at line 155 of file 9S12XDP512.h.
| #define PTIH DVUCP(0x0261) |
Definition at line 157 of file 9S12XDP512.h.
| #define PTIJ DVUCP(0x0269) |
Definition at line 169 of file 9S12XDP512.h.
| #define PTIM DVUCP(0x0251) |
Definition at line 130 of file 9S12XDP512.h.
| #define PTIP DVUCP(0x0259) |
Definition at line 145 of file 9S12XDP512.h.
| #define PTIS DVUCP(0x0249) |
Definition at line 119 of file 9S12XDP512.h.
| #define PTIT DVUCP(0x0241) |
Definition at line 109 of file 9S12XDP512.h.
Referenced by InjectorXISR(), PrimaryRPMISR(), and SecondaryRPMISR().
| #define PTJ DVUCP(0x0268) |
Definition at line 167 of file 9S12XDP512.h.
| #define PTM DVUCP(0x0250) |
Definition at line 128 of file 9S12XDP512.h.
| #define PTMCPSR DVUCP(0x006F) |
| #define PTP DVUCP(0x0258) |
Definition at line 143 of file 9S12XDP512.h.
| #define PTPSR DVUCP(0x006E) |
| #define PTS DVUCP(0x0248) |
Definition at line 117 of file 9S12XDP512.h.
| #define PTT DVUCP(0x0240) |
Definition at line 107 of file 9S12XDP512.h.
| #define PUCR DVUCP(0x000C) |
Definition at line 93 of file 9S12XDP512.h.
| #define PWMCAE DVUCP(0x0304) |
Definition at line 821 of file 9S12XDP512.h.
| #define PWMCLK DVUCP(0x0302) |
| #define PWMCNT0 DVUCP(0x030C) |
Definition at line 825 of file 9S12XDP512.h.
| #define PWMCNT1 DVUCP(0x030D) |
Definition at line 826 of file 9S12XDP512.h.
| #define PWMCNT2 DVUCP(0x030E) |
Definition at line 827 of file 9S12XDP512.h.
| #define PWMCNT3 DVUCP(0x030F) |
Definition at line 828 of file 9S12XDP512.h.
| #define PWMCNT4 DVUCP(0x0310) |
Definition at line 829 of file 9S12XDP512.h.
| #define PWMCNT5 DVUCP(0x0311) |
Definition at line 830 of file 9S12XDP512.h.
| #define PWMCNT6 DVUCP(0x0312) |
Definition at line 831 of file 9S12XDP512.h.
| #define PWMCNT7 DVUCP(0x0313) |
Definition at line 832 of file 9S12XDP512.h.
| #define PWMCTL DVUCP(0x0305) |
Definition at line 822 of file 9S12XDP512.h.
| #define PWMDTY0 DVUCP(0x031C) |
| #define PWMDTY1 DVUCP(0x031D) |
| #define PWMDTY2 DVUCP(0x031E) |
| #define PWMDTY3 DVUCP(0x031F) |
| #define PWMDTY4 DVUCP(0x0320) |
| #define PWMDTY5 DVUCP(0x0321) |
| #define PWMDTY6 DVUCP(0x0322) |
| #define PWMDTY7 DVUCP(0x0323) |
| #define PWME DVUCP(0x0300) |
| #define PWMPER0 DVUCP(0x0314) /* PWM period value */ |
| #define PWMPER1 DVUCP(0x0315) /* */ |
| #define PWMPER2 DVUCP(0x0316) /* */ |
| #define PWMPER3 DVUCP(0x0317) /* */ |
| #define PWMPER4 DVUCP(0x0318) /* */ |
| #define PWMPER5 DVUCP(0x0319) /* */ |
| #define PWMPER6 DVUCP(0x031A) /* */ |
| #define PWMPER7 DVUCP(0x031B) /* PWM period value */ |
| #define PWMPOL DVUCP(0x0301) |
Definition at line 818 of file 9S12XDP512.h.
| #define PWMPRCLK DVUCP(0x0303) |
| #define PWMSCLA DVUCP(0x0308) |
| #define PWMSCLB DVUCP(0x0309) |
| #define PWMSDN DVUCP(0x0324) |
Definition at line 849 of file 9S12XDP512.h.
| #define RDRH DVUCP(0x0263) |
Definition at line 159 of file 9S12XDP512.h.
| #define RDRIV DVUCP(0x000D) |
Definition at line 99 of file 9S12XDP512.h.
| #define RDRJ DVUCP(0x026B) |
Definition at line 171 of file 9S12XDP512.h.
| #define RDRM DVUCP(0x0253) |
Definition at line 132 of file 9S12XDP512.h.
| #define RDRP DVUCP(0x025B) |
Definition at line 147 of file 9S12XDP512.h.
| #define RDRS DVUCP(0x024B) |
Definition at line 121 of file 9S12XDP512.h.
| #define RDRT DVUCP(0x0243) |
Definition at line 111 of file 9S12XDP512.h.
| #define REFDV DVUCP(0x0035) |
| #define RPAGE DVUCP(0x0016) |
Definition at line 203 of file 9S12XDP512.h.
Referenced by decodePacketAndRespond(), initPagedRAMFuel(), initPagedRAMTime(), initPagedRAMTune(), lookupPagedMainTableCellValue(), setPagedMainTableCellValue(), setPagedMainTableLoadValue(), setPagedMainTableRPMValue(), setPagedTwoDTableAxisValue(), setPagedTwoDTableCellValue(), setupPagedRAM(), writeBlock(), and writeSector().
| #define RTICTL DVUCP(0x003B) |
| #define SCI0_BASE 0x00C8 |
Definition at line 430 of file 9S12XDP512.h.
| #define SCI0ACR1 DVUCP(SCI0_BASE + 0x1) |
Definition at line 436 of file 9S12XDP512.h.
| #define SCI0ACR2 DVUCP(SCI0_BASE + 0x2) |
Definition at line 437 of file 9S12XDP512.h.
| #define SCI0ASR1 DVUCP(SCI0_BASE + 0x0) |
Definition at line 435 of file 9S12XDP512.h.
| #define SCI0BD DVUSP(SCI0_BASE + 0x0) |
| #define SCI0CR1 DVUCP(SCI0_BASE + 0x2) |
| #define SCI0CR2 DVUCP(SCI0_BASE + 0x3) |
Definition at line 439 of file 9S12XDP512.h.
Referenced by checksumAndSend(), initSCIStuff(), main(), resetReceiveState(), and SCI0ISR().
| #define SCI0DRH DVUCP(SCI0_BASE + 0x6) |
Definition at line 442 of file 9S12XDP512.h.
| #define SCI0DRL DVUCP(SCI0_BASE + 0x7) |
Definition at line 443 of file 9S12XDP512.h.
Referenced by checksumAndSend(), SCI0ISR(), and sendAndIncrement().
| #define SCI0SR1 DVUCP(SCI0_BASE + 0x4) |
| #define SCI0SR2 DVUCP(SCI0_BASE + 0x5) |
Definition at line 441 of file 9S12XDP512.h.
| #define SYNR DVUCP(0x0034) |
| #define TC0 DVUSP(0x0050) |
| #define TC0H DVUSP(0x0078) |
Definition at line 289 of file 9S12XDP512.h.
| #define TC1 DVUSP(0x0052) |
| #define TC1H DVUSP(0x007A) |
Definition at line 290 of file 9S12XDP512.h.
| #define TC2 DVUSP(0x0054) |
Definition at line 297 of file 9S12XDP512.h.
| #define TC2_ADDR AVUSP(0x0054) |
| #define TC2H DVUSP(0x007C) |
Definition at line 291 of file 9S12XDP512.h.
| #define TC3 DVUSP(0x0056) |
Definition at line 298 of file 9S12XDP512.h.
| #define TC3_ADDR AVUSP(0x0056) |
| #define TC3H DVUSP(0x007E) |
Definition at line 292 of file 9S12XDP512.h.
| #define TC4 DVUSP(0x0058) |
Definition at line 299 of file 9S12XDP512.h.
| #define TC4_ADDR AVUSP(0x0058) |
| #define TC5 DVUSP(0x005A) |
Definition at line 300 of file 9S12XDP512.h.
| #define TC5_ADDR AVUSP(0x005A) |
| #define TC6 DVUSP(0x005C) |
Definition at line 301 of file 9S12XDP512.h.
| #define TC6_ADDR AVUSP(0x005C) |
| #define TC7 DVUSP(0x005E) |
Definition at line 302 of file 9S12XDP512.h.
| #define TC7_ADDR AVUSP(0x005E) |
| #define TCNT DVUSP(0x0044) |
Definition at line 245 of file 9S12XDP512.h.
Referenced by InjectorXISR(), main(), PrimaryRPMISR(), RTIISR(), SCI0ISR(), and SecondaryRPMISR().
| #define TCTL1 DVUCP(0x0048) |
| #define TCTL1_ADDR AVUCP(0x0048) |
| #define TCTL2 DVUCP(0x0049) |
| #define TCTL2_ADDR AVUCP(0x0049) |
| #define TCTL3 DVUCP(0x004A) |
| #define TCTL4 DVUCP(0x004B) |
| #define TFLG DVUCP(0x004E) |
Definition at line 252 of file 9S12XDP512.h.
Referenced by initECTTimer(), InjectorXISR(), PrimaryRPMISR(), and SecondaryRPMISR().
| #define TFLGOF DVUCP(0x004F) |
Definition at line 253 of file 9S12XDP512.h.
Referenced by initECTTimer(), InjectorXISR(), PrimaryRPMISR(), SecondaryRPMISR(), and TimerOverflow().
| #define TIE DVUCP(0x004C) |
Definition at line 249 of file 9S12XDP512.h.
Referenced by initECTTimer(), InjectorXISR(), and PrimaryRPMISR().
| #define TIOS DVUCP(0x0040) |
| #define TSCR1 DVUCP(0x0046) |
| #define TSCR2 DVUCP(0x004D) |
| #define TTOV DVUCP(0x0047) |
Definition at line 257 of file 9S12XDP512.h.
| #define VREGAPICL DVUCP(0x02F2) |
Definition at line 812 of file 9S12XDP512.h.
| #define VREGAPIR DVUSP(0x02F4) |
Definition at line 814 of file 9S12XDP512.h.
| #define VREGAPITR DVUCP(0x02F3) |
Definition at line 813 of file 9S12XDP512.h.
| #define VREGCTRL DVUCP(0x02F1) |
| #define WOMM DVUCP(0x0256) |
Definition at line 135 of file 9S12XDP512.h.
| #define WOMS DVUCP(0x024E) |
Definition at line 124 of file 9S12XDP512.h.
| #define XGMCTL DVUSP(0x0380) |
Definition at line 872 of file 9S12XDP512.h.
| #define XGMCTLHI DVUCP(0x0380) |
Definition at line 873 of file 9S12XDP512.h.
| #define XGMCTLLO DVUCP(0x0381) |
Definition at line 874 of file 9S12XDP512.h.
